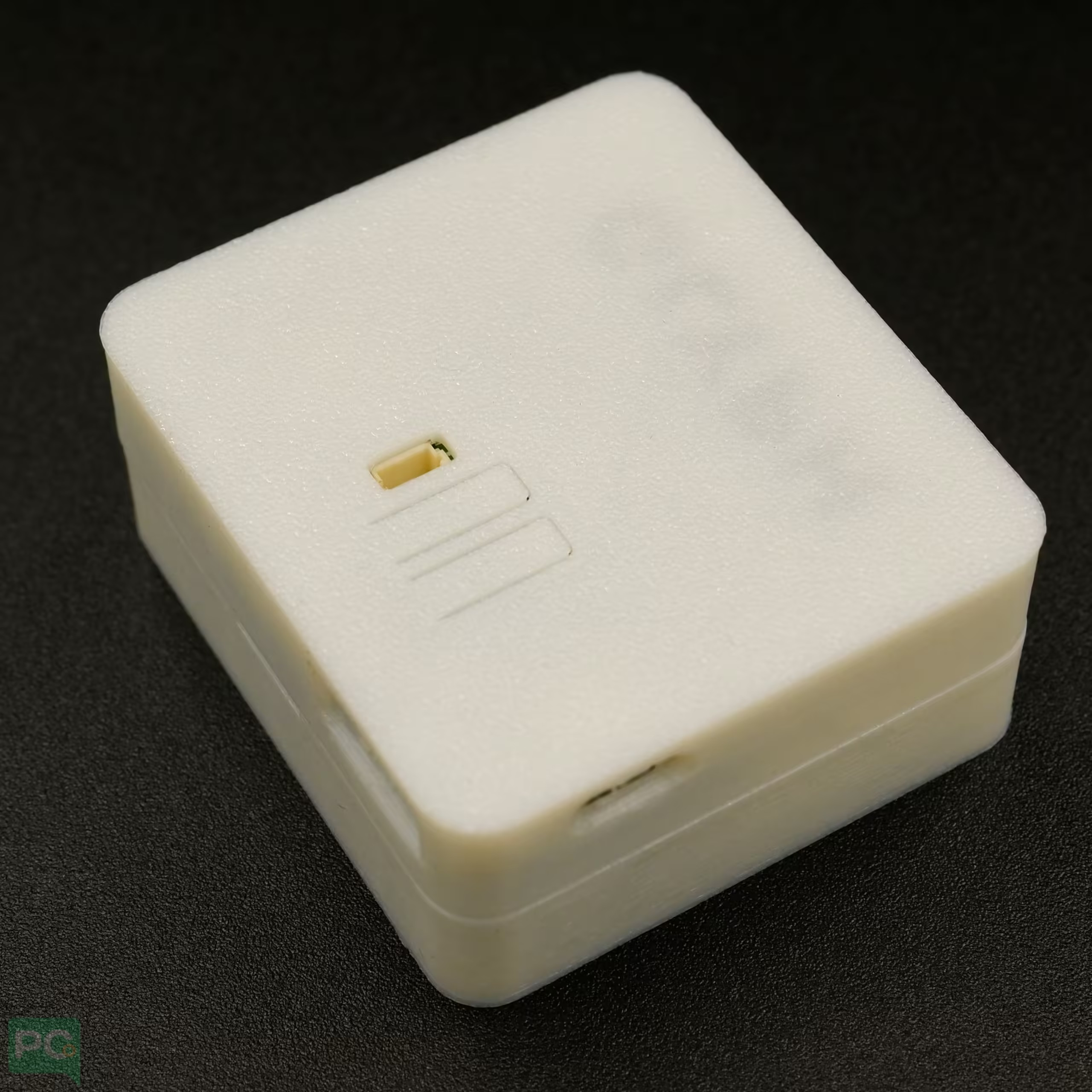

GLYPH C3 – Compact & Low Cost ESP32C3 DEV Board with Case
Original price was: $10.50.$8.50Current price is: $8.50.

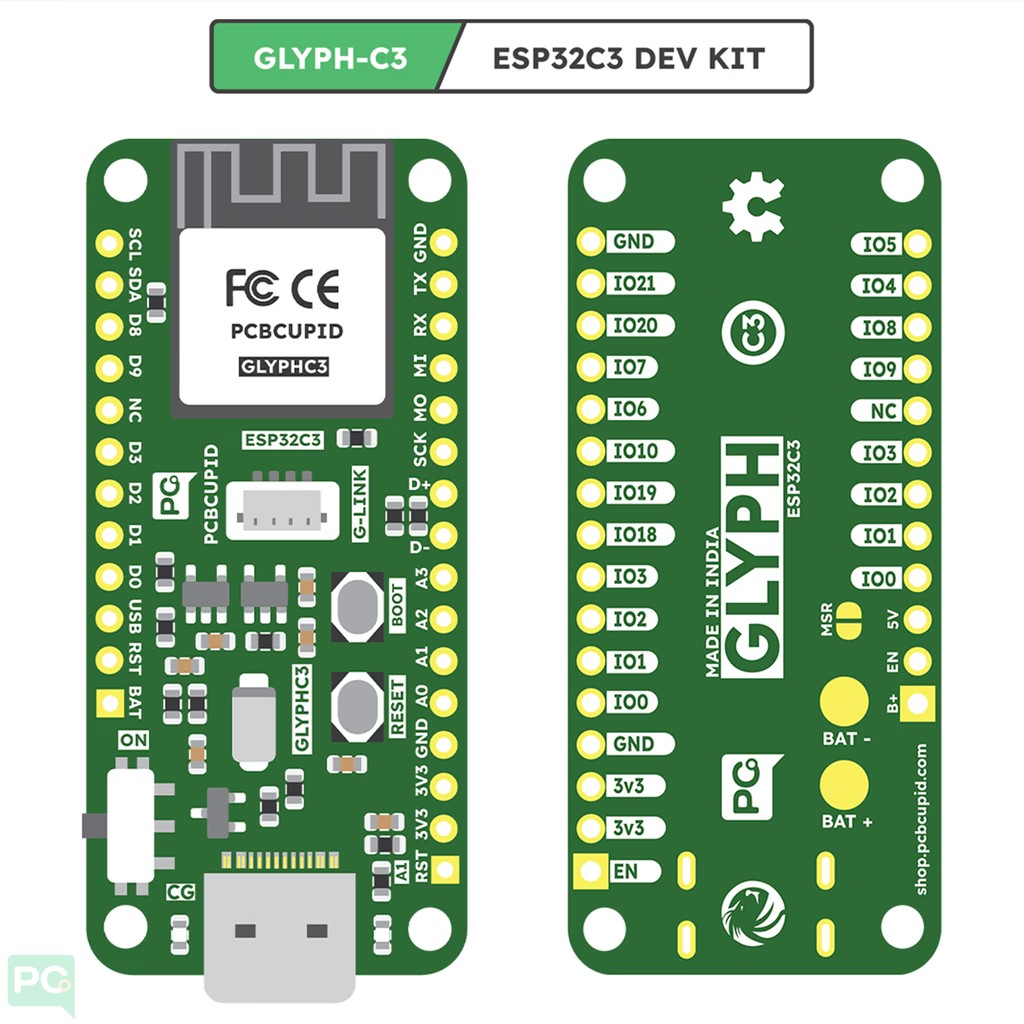

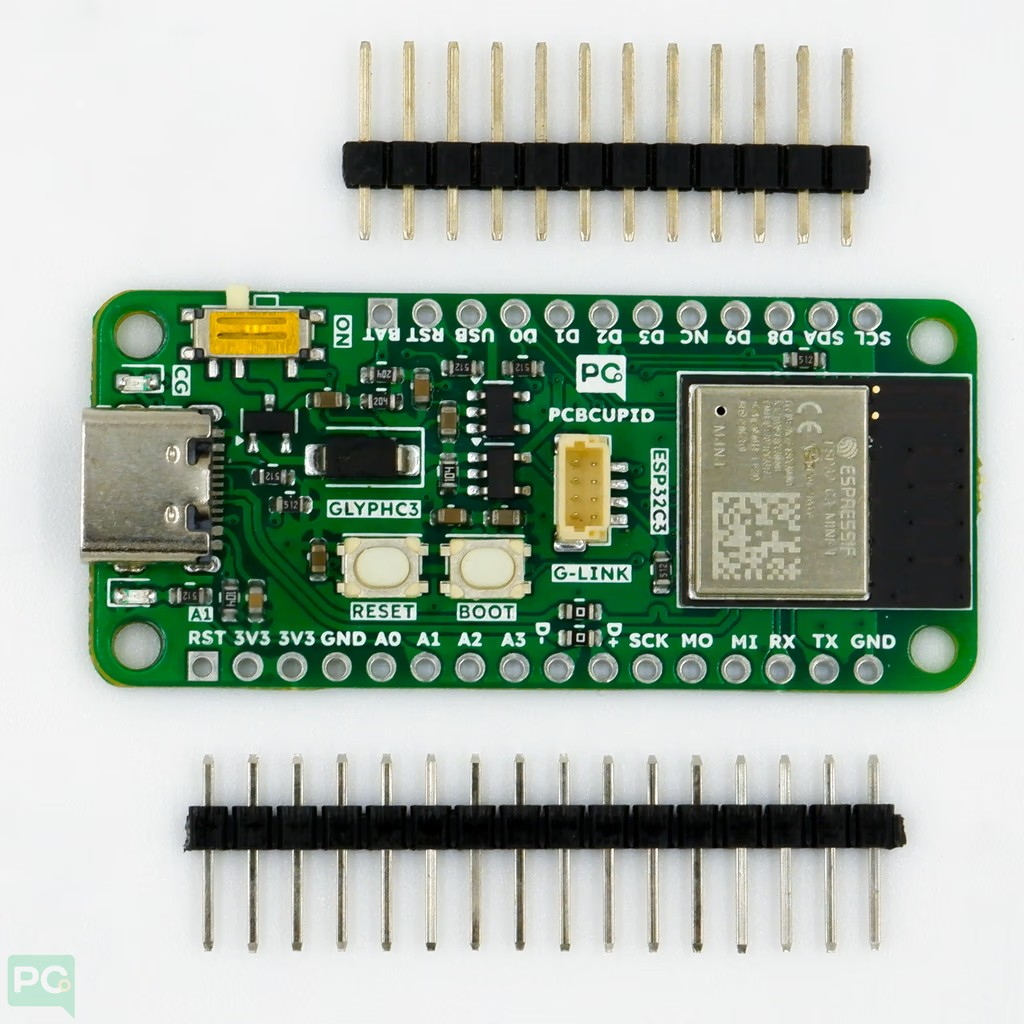

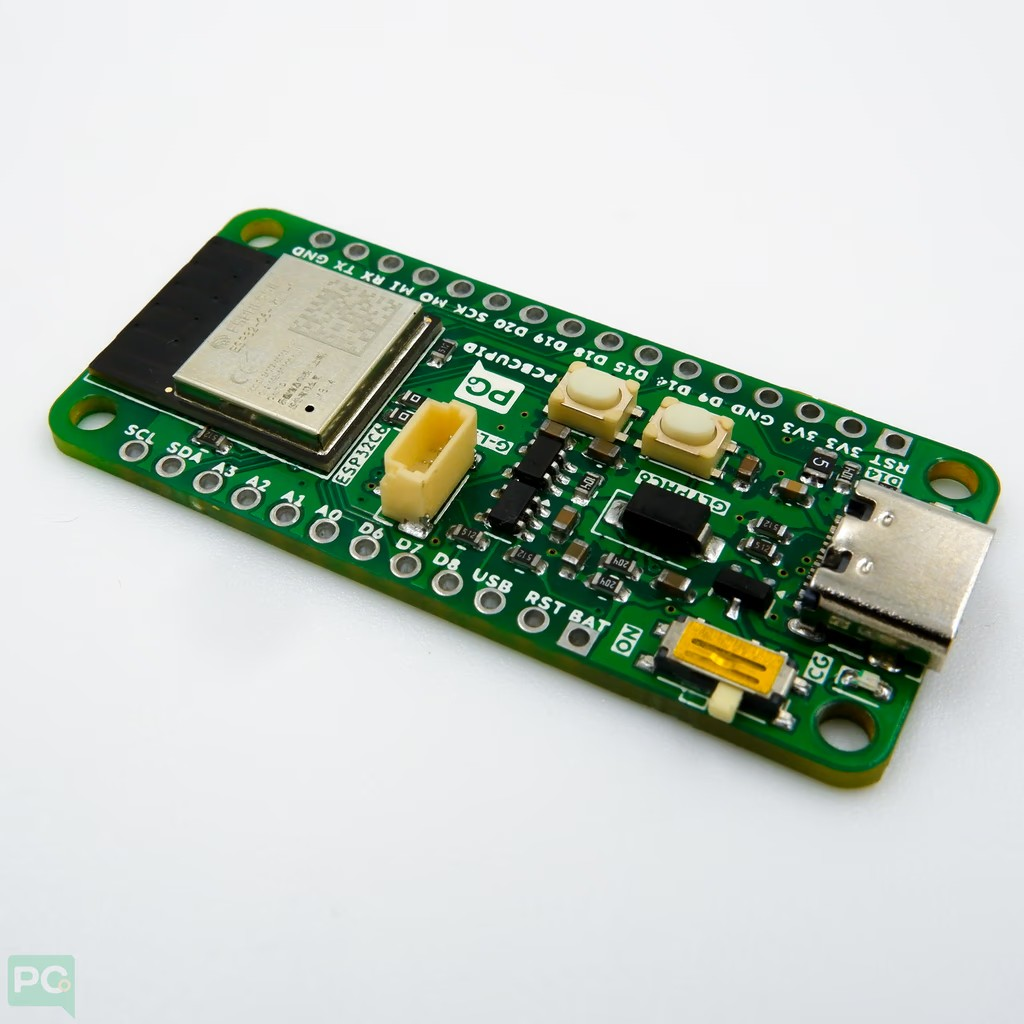

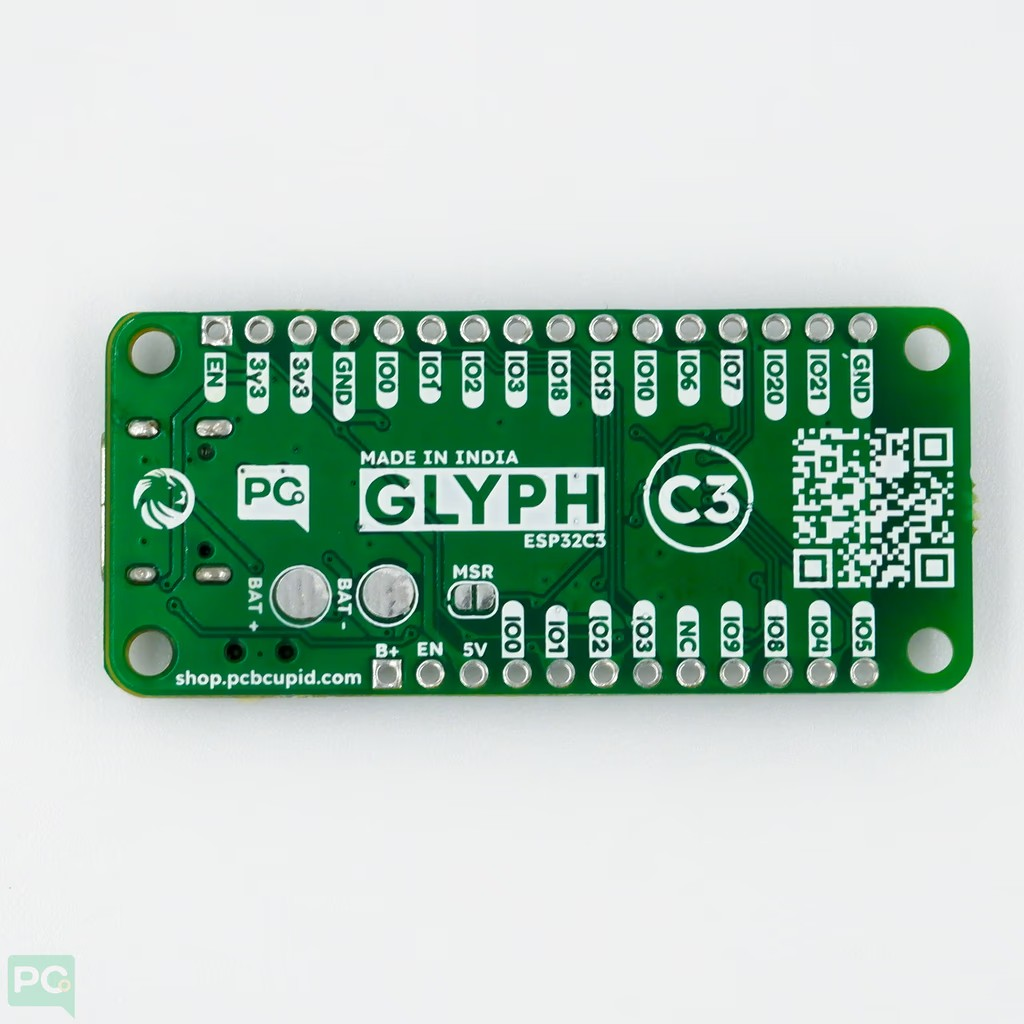

Introducing the Glyph-C3 Development Board, India’s most affordable and feature loaded development board, with a compact at 50.8mm x 22.8mm x 1.6mm). It features an ESP32-C3 32-bit RISC-V single-core processor running at 160 MHz, with 400 KB SRAM and 4 MB flash for storage.
Everything you need to know about the GLYPH-C3 Boards.
In stock
Introducing the Glyph-C3 Development Board, India’s most affordable and feature loaded development board, with a compact at 50.8mm x 22.8mm x 1.6mm). It features an ESP32-C3 32-bit RISC-V single-core processor running at 160 MHz, with 400 KB SRAM and 4 MB flash for storage.
The board supports Wi-Fi ((802.11 b/g/n) and Bluetooth (5), perfect for all your IoT projects. It includes 15 GPIO pins, 12-bit ADCs, I2C, SPI, USB Serial and UART peripheral. Additional features include a built-in Lipo / Li-ion battery charger and monitoring circuit along with Glink connector for easy integration with QWIIC, STEMMA QT compatible sensors produced by Sparkfun & Adafruit respectively.
All our ESP based Glyph boards support Arduino, MicroPython, and ESP-IDF development environments.
Dimensions
- Width: 22.8 mm
- Height: 50.8 mm
- Depth: 1.6 mm
The Glyph platform is built to enhance IoT projects and user convenience to use them.
Glyph boards are featured loaded with :
- USB Type-C Connector
- Onboard BMS circuit
- Auto Switch from Battery Power to USB Power
- Reverse Voltage Protection Diode
- Slide Switch for battery longevity
- High Quality Push Buttons
- Glink Connector compatible with QWIIC & STEMMA QT
The images in this site are just for representation, the actual product may slightly vary in terms of color. Rest assured; the Glyph has been thoroughly tested to ensure it is in excellent working condition.
| Weight | 0.1 g |
|---|
