- Made in India

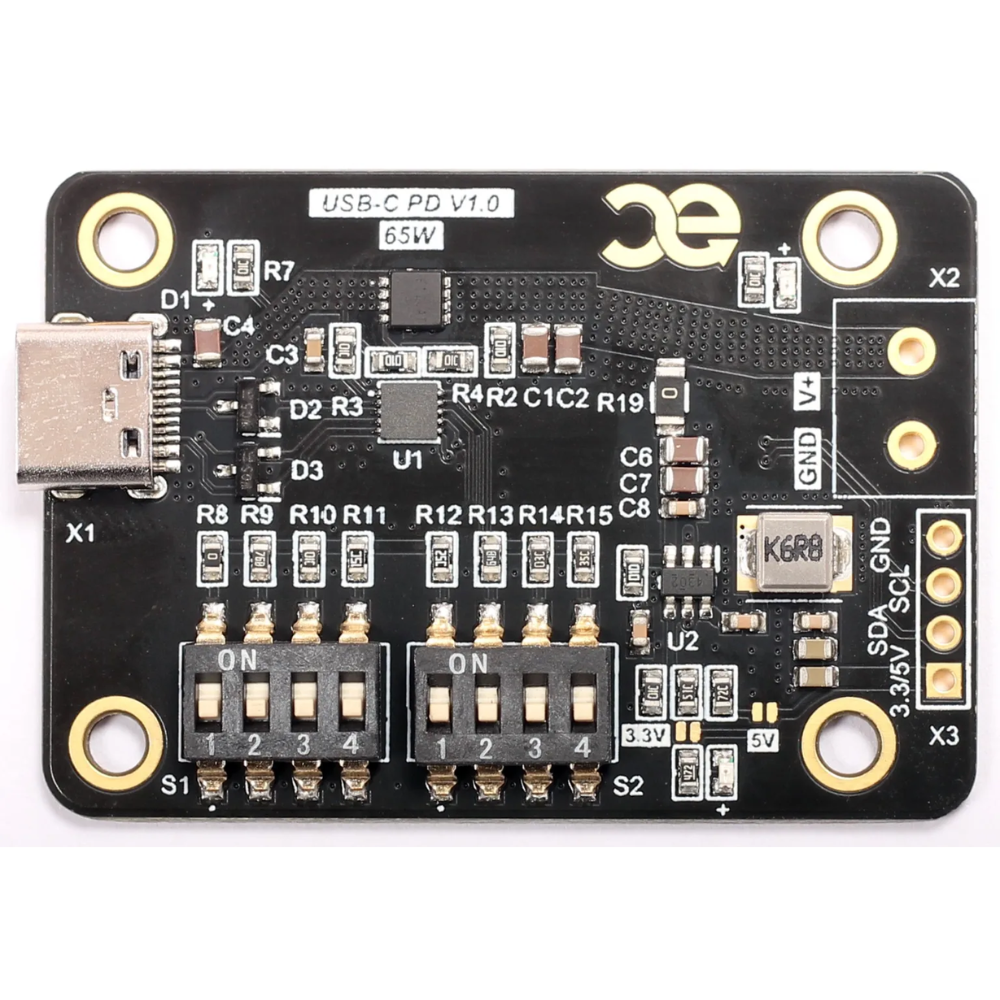

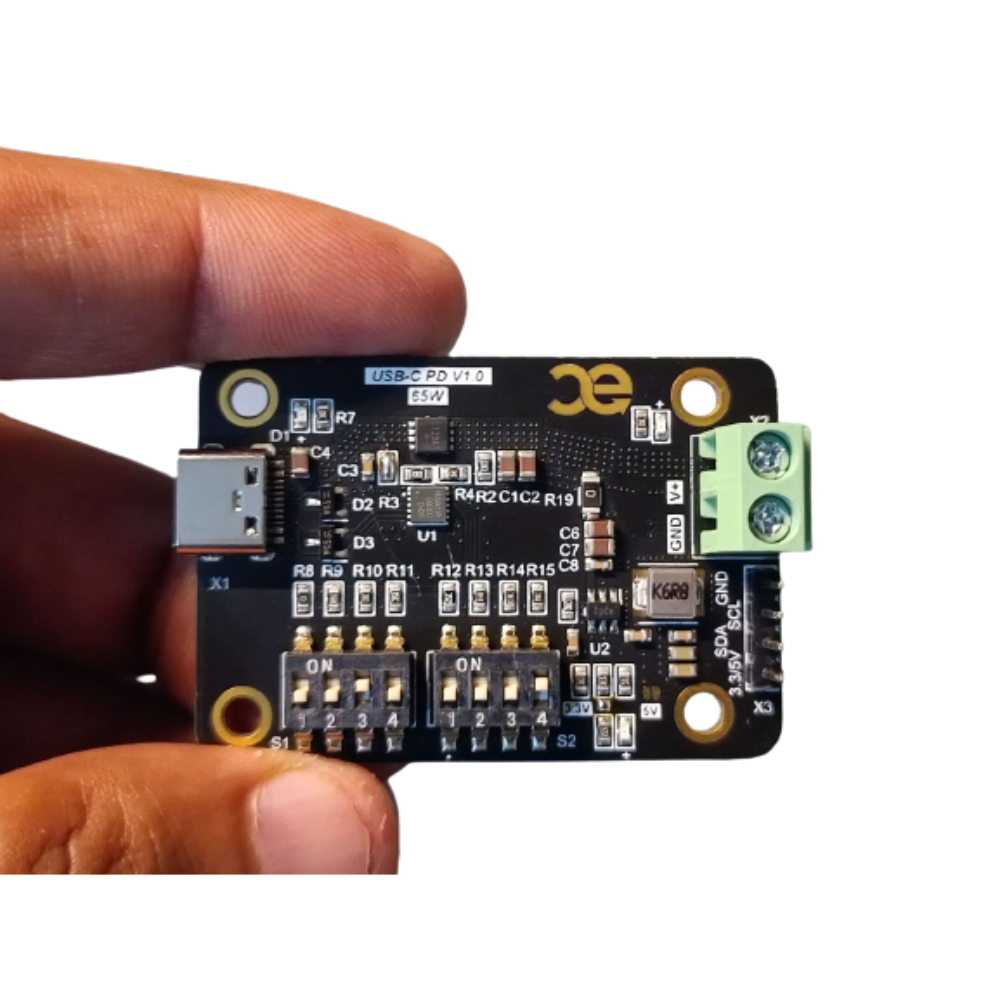

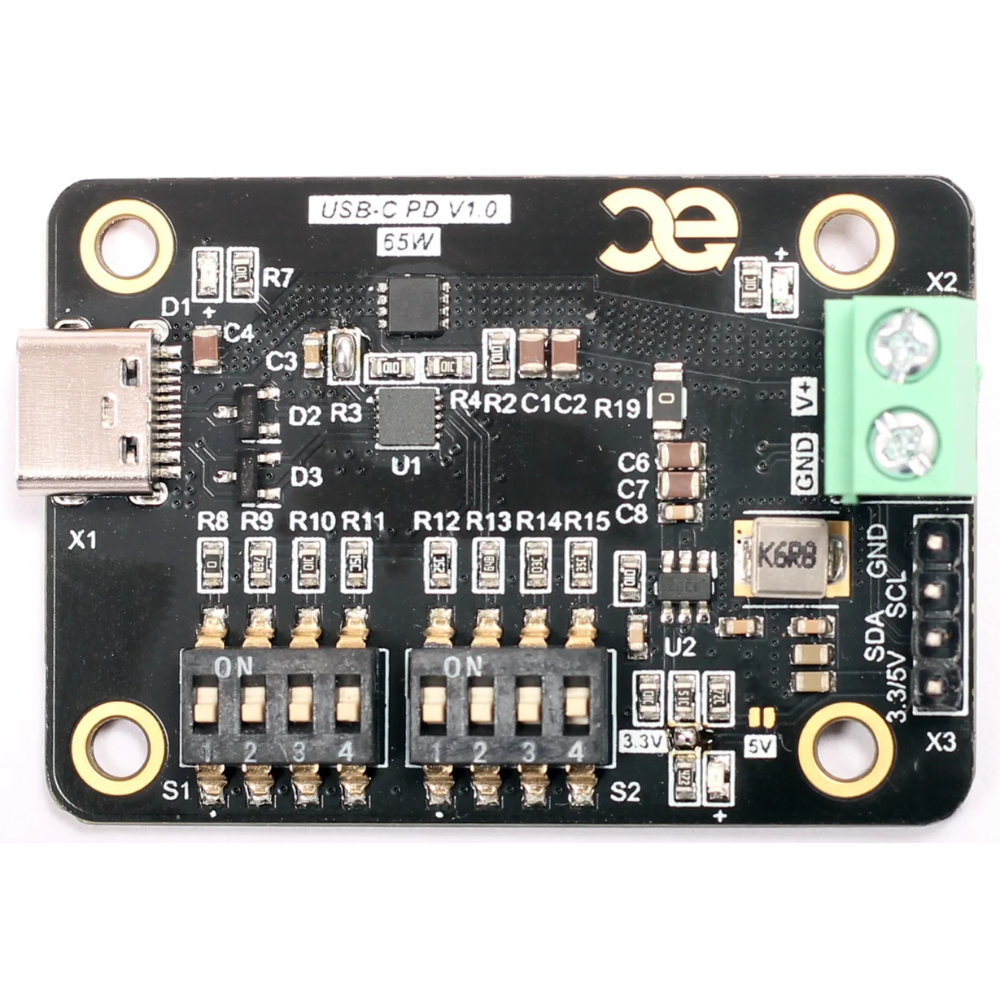

- Dimensions 50mm x 35mm
- USB-C Input
- Power Delivery Upto 65W, O/P selection using a DIP switch or I2C Interface
- Additional DC-DC Converter(TPS54302) onboard to generate 3.3V 1A / 5V 0.65A output so that you need fewer components on your application board.
- 4x Mounting holes for easy mounting
- LED indication for USB-C Input, USB PD Output and DC-DC Converter Output.
- A 2-pin power Terminal is given for easy connection.
- A 4-pin 2.54mm Header connector is given for the I2C connection.

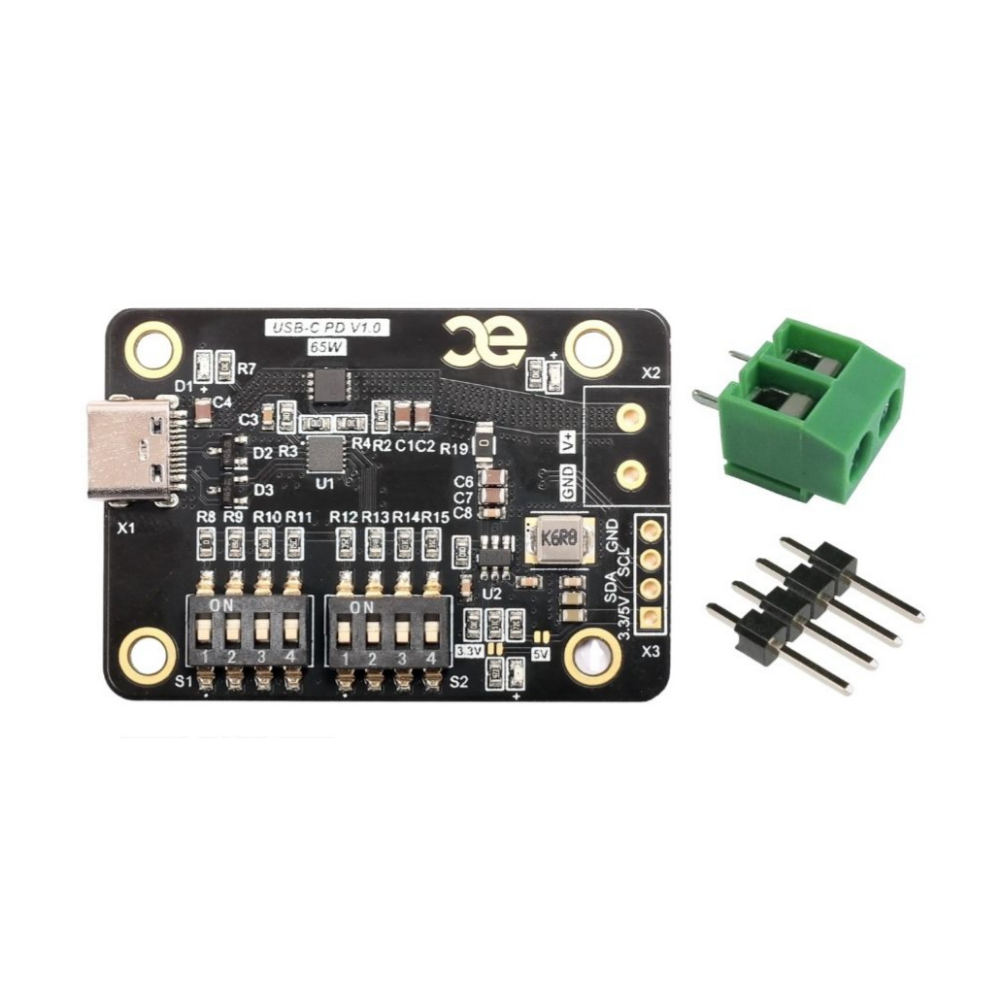

- Both connectors will come unsoldered
| Voltage Configuration | Switch Position |
|---|---|
| 5V O/P | S1 – 1 ON, S1 – 2, 3, 4 – OFF, S2-1 OFF |
| 9V O/P | S1 – 2 ON, S1 – 1, 3, 4 – OFF, S2-1 OFF |
| 12V O/P | S1 – 3 ON, S1 – 1, 2, 4 – OFF, S2-1 OFF |
| 15V O/P | S1 – 4 ON, S1 – 1, 2, 3 – OFF, S2-1 OFF |
| 18V O/P | S1 – 1, 2, 3, 4 – OFF, S2-1 ON |
| 20V O/P | S1 – 1, 2, 3, 4 – OFF, S2-1 OFF |
| Current Configuration | Switch Position |
|---|---|
| 1.5A O/P | S2-2 ON, S2-3, 4 – OFF |
| 2.5A O/P | S2-3 ON, S2-2, 4 – OFF |
| 3.0A O/P | S2-4 ON, S2-2, 3 – OFF |
| 3.25A O/P | S2-2, 3, 4 OFF |
Voltage Selection
Colette –
I came across this Amazing 65W USB-C PD Board following the project on twitter from Pallav Aggarwal. This is a great tool for users who want to harness the maximum ability of USB-C Power Delivery Feature. Talking about the package, The board comes with a cool Black + Gold Finish properly packed in an Antistatic Bag with a cool sticker on the product. Ordering this product from this store is a great experience, as I got a cool PCB Keychain and A Nerdy Sticker as a gift from the seller.
Pallav has also written a Great documentation of the product which allowed me to use the product effectively with precautions. Looking forward for more such projects and tools 🙂
Paul –
The boards are thoughtfully designed for ease of use. Having the flexibility to use DIP switches to configure preferred voltage and the ability to interact programmatically via i2c makes power prototyping simple. The boards were very well packaged and came quickly, within a few days. The seller was friendly and helpful – all in all I can heartily recommend both the boards and the seller.
