The CH32V003 is an ultra-low-cost (10-cent) 32-bit microcontroller based on the RISC-V 2A core. It has a maximum system main frequency of 48MHz and features 2KB of SRAM and 16KB of Flash memory.
The CH32V003 also has a wide range of peripheral interfaces, including a DMA controller, a 10-bit ADC, an op-amp comparator, multiple timers, and standard communication interfaces such as USART, I2C, and SPI. The CH32V003 can be used in a wide range of applications.
If an engineer or maker wants to evaluate or start learning about CH32V003, they have an MCU breakout board, which is useless. To explore the MCU fully, they need different breakout boards.

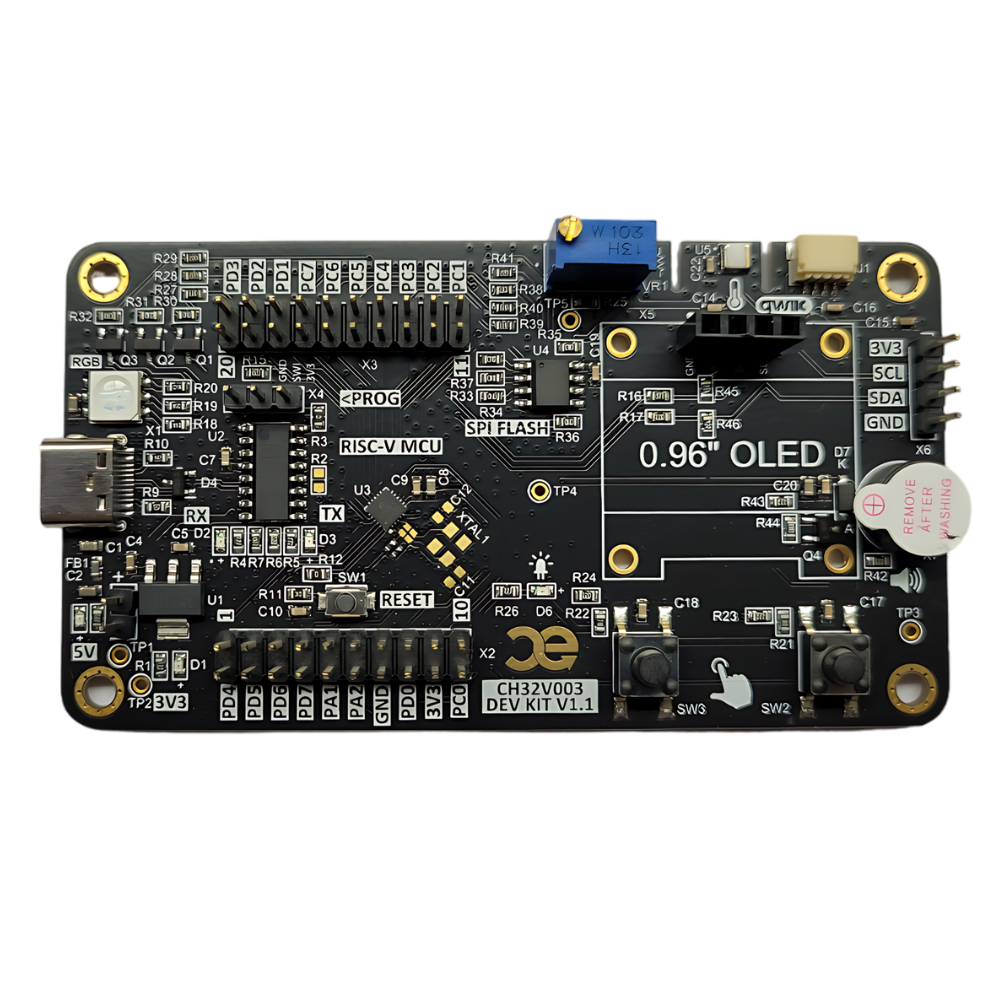

Features
USB-C Port for Power (5V) and Serial Interface
On Board 3.3V LDO
UART – USB to UART
I2C Interface
Temperature Humidity Sensor
I2C – Qwiic Connector for connecting external sensor boards
I2C – 0.96″ 128×64 Pixels OLED Display Module (included in the package)
I2C – Male 4 Pin Header is provided to connect to other boards via jumper wires. The connector is not soldered on the board.
SPI – 8Mbit SPI NOR Flash
PWM – RGB LED
GPIO – I/P – Two Keys
ADC I/P – Variable Resistor / Potentiometer
GPIO – O/P – One LED and one Buzzer
3 Pin header for WCH-LinkE Programmer

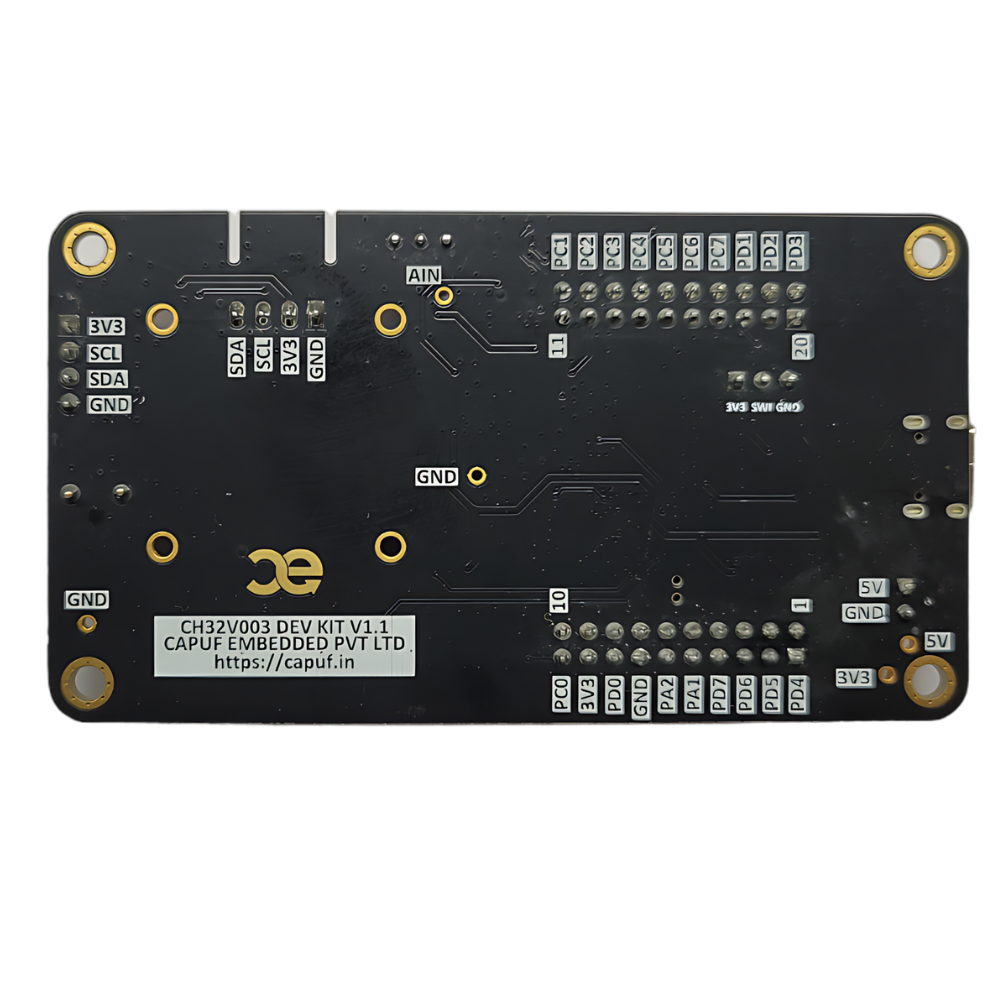

20 Pin MCU IOs Breakout on headers
LED Indications for 5V/3.3V/UART RX, TX
Option for connecting external 24Mhz Oscillator
MCU Reset Button is provided on the board
More Resources
CH32V003 Dev Kit comes with the following:
CH32V003 Dev Kit Development Board
USB-A to USB-C Cable
WCHLinkE Programmer
Jumper wires
The package includes the above, so the developer does not need to buy anything else to evaluate the CH32V003 MCU fully.
